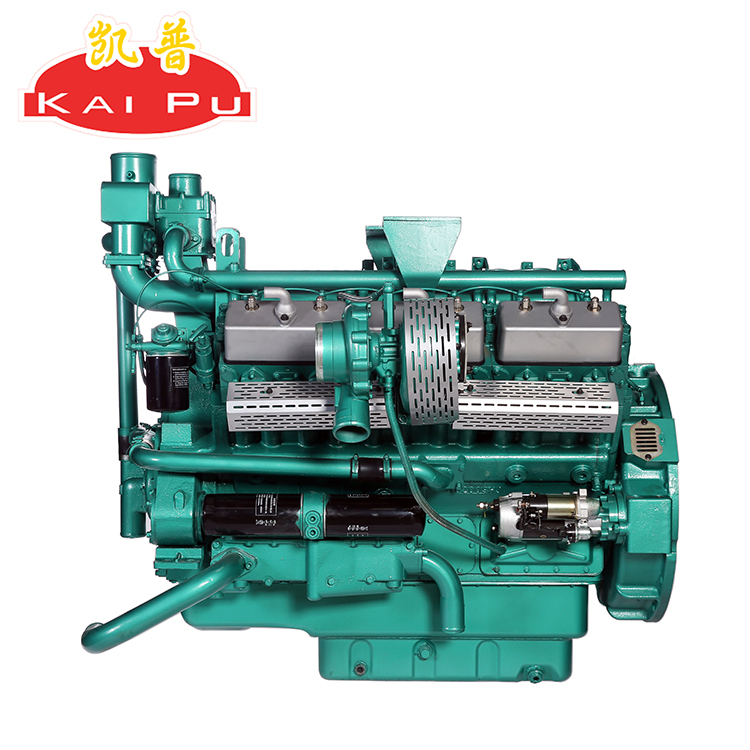

KAI-PU KPV1100 12 Cylinder High Speed 4 Stroke Diesel Engine Generator Set

Share to:

Model:
KPV1100
Brand:
KAI-PU
Aspiration:
Turbocharged Inter-Cooled
Rated Power:
1030kw
Rated Speed:
1500/1800rpm
Bore*Stroke:
138*168mm
Displacement:
33.8L
Fuel Consumption:
≤198g/kw.h
Noise:
≤117dB
Smoke:
≤2.0FSN
Color:
Customers' Requirement

Availability:



Inquire

Features

Parallel channel, double pump, integrated cooling machine filter, compact appearance, meet diesel engine cooling and lubrication requirements.

High strength steel back bearing shell, strong bearing capacity, stable operation and longer life.

The oil pump with large flow capacity, with vibrated cooling oil chamber piston, can effectively reduce the temperature of piston and ring set, and the operation is stable and reliable.

Adopt large flow high-pressure ratio supercharger, increase airflow pressure, improve air intake, effectively reduce exhaust emissions, and meet better performance requirements under high power.

Product Details

KPV1100-1 KPV1100-2

KPV1100-3 KPV1100-4

1030kw 4 Stroke Diesel Engine 1030kw 4 Stroke Diesel Engine Generator Set 4 Stroke Diesel Engine Generator Set high speed 4 Stroke Design Diesel Engine 12 cylinder Electric Start Diesel engine 4 Stroke Water Cooled Diesel Engine 12 cylinder 4 Stroke Diesel engine High Speed Simple Diesel Engine generator set KAI-PU KPV1100 12 cylinder Diesel Engine KPV1100 12 cylinder Diesel Engine

Engine Model	KPV1100
Type	direct injection, four-stroke, v-type,water-cooled
Intake Type	Turbocharged with inter-cooled
Max power	1030kw
*BoreStroke**	138×168(mm)
Number of Cylinders	12
Cylinders Type	Wet liner
Total Displacement	33.8(L)
Specific Fuel Consumption	≤198（g/kw.h）
Specific Oil Consumption	≤0.7（g/kw.h）
Idle Speed	700(rpm)
Rated Speed	1500/1800(rpm)
Speed Governing Mode	Electronic Governor
Starting Mode	Electrical starting
Crankshaft Rotating Direction	Anti-Clockwise / Facing the flywheel
Noise	≤117(db)
Smoke	≤2.0
Flywheel casing	SAE 0.5#
Flywheel	SAE 14#
Net Weight	2100(kg)
*Longwidehigh*	201517501500(mm)
Fuel Grade(According to the Provisions of GB 252)	General Environment No.0 or No.-10 Light Diesel Oil
Southern Area	No.10 Light Diesel Oil
Northern Cold Area	No.-35 or Lower Point Light Diesel Oil
Engine Oil According to The Provisions of GB 11122	CF15W/40(Below environment temperature-5℃)

Engine Model	KPV1100
Type	direct injection, four-stroke, v-type,water-cooled
Intake Type	Turbocharged with inter-cooled
Max power	1030kw
*BoreStroke**	138×168(mm)
Number of Cylinders	12
Cylinders Type	Wet liner
Total Displacement	33.8(L)
Specific Fuel Consumption	≤198（g/kw.h）
Specific Oil Consumption	≤0.7（g/kw.h）
Idle Speed	700(rpm)
Rated Speed	1500/1800(rpm)
Speed Governing Mode	Electronic Governor
Starting Mode	Electrical starting
Crankshaft Rotating Direction	Anti-Clockwise / Facing the flywheel
Noise	≤117(db)
Smoke	≤2.0
Flywheel casing	SAE 0.5#
Flywheel	SAE 14#
Net Weight	2100(kg)
*Longwidehigh*	201517501500(mm)
Fuel Grade(According to the Provisions of GB 252)	General Environment No.0 or No.-10 Light Diesel Oil
Southern Area	No.10 Light Diesel Oil
Northern Cold Area	No.-35 or Lower Point Light Diesel Oil
Engine Oil According to The Provisions of GB 11122	CF15W/40(Below environment temperature-5℃)

Model	A	B	C	D
KPV1100	1768	190*2	610	965

Model	A	B	C	D
KPV1100	1768	190*2	610	965
