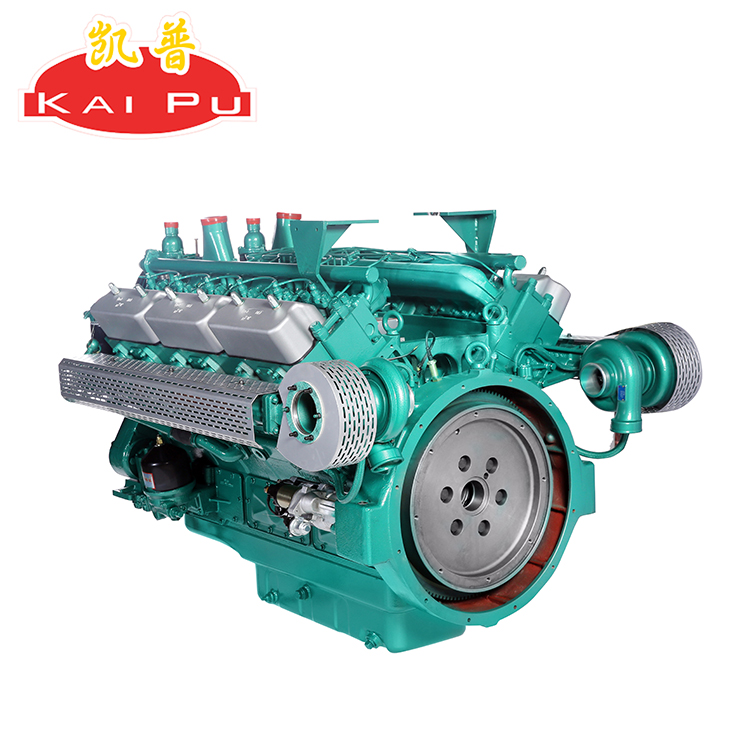

KAI-PU 12V135AZD High Performance 1500/1800rpm Water Cooled Diesel Engines Generator Set

Name: KAI-PU 12V135AZD High Performance 1500/1800rpm Water Cooled Diesel Engines Generator Set
Brand: KAI-PU
Rating: 5.0 (41 reviews)

Share to:

Model:
12V135AZD
Brand:
KAI-PU
Brand:
KAI-PU
Aspiration:
Turbocharged Inter-Cooled
Rated Power:
330kw
Rated Speed:
1500/1800rpm
Bore*Stroke:
135*150mm
Displacement:
25.8L
Fuel Consumption:
≤198g/kw.h
Noise:
≤117dB
Smoke:
≤2.0FSN
Color:
Customers' Requirement

Availability:


Inquire

Features

KAI-PU series diesel engine is a new type of power generation diesel engine which is improved on the basis of the original series 135 series.

The air intake system is optimized in structure, the appearance of pipeline is simplified, and high-grade vehicle paint is selected. The appearance is more compact and beautiful.

Equipped with oil and water separator, system alarm self-protection device and oil pump, making the diesel engine application more safe, reliable and convenient.

Adopting high pressure and air medium cooling technology, equipped with special high pressure oil pump, porous low pressure inertia injector and electronic governor, it can atomize well and burn well , reduce noise and save energy and environmental protection.

Product Details

KP425-KP475局部1 KP425-KP475局部2

KP425-KP475局部3 KP425-KP475局部4

High Performance Diesel Engines Generator Set 1500/1800rpm Water Cooled Diesel Engines Generator Set Water Cooled Diesel Engines Generator Set High Performance 330kw Water Cooled Diesel Engines High Performance 1500/1800rpm Diesel Engines Generator Set 1500/1800rpm Water Cooled Diesel Engine High Performance Diesel Engine KAI-PU High Performance Water Cooled Diesel Engines Generator Set 1500/1800rpm Water Cooled new Diesel Engines Generator Set High Performance 1500/1800rpm Water Cooled Diesel Engines

Engine Model	12V135AZD
Type	direct injection, four-stroke, v-type,water-cooled
Intake Type	Turbocharged with inter-cooled
Max power	330kw
*BoreStroke**	135×150(mm)
Number of Cylinders	12
Cylinders Type	Wet liner
Total Displacement	25.8(L)
Specific Fuel Consumption	≤198（g/kw.h）
Specific Oil Consumption	≤0.7（g/kw.h）
Idle Speed	700(rpm)
Rated Speed	1500(rpm)
Speed Governing Mode	Electronic Governor
Starting Mode	Electrical starting
Crankshaft Rotating Direction	Anti-Clockwise / Facing the flywheel
Noise	117(db)
Smoke	≤2.0
Flywheel casing	SAE 0.5
Flywheel	SAE 14
Net Weight	1950(kg)
*Longwidehigh*	201514501500(mm)
Fuel Grade(According to the Provisions of GB 252)	General Environment No.0 or No.-10 Light Diesel Oil
Southern Area	No.10 Light Diesel Oil
Northern Cold Area	No.-35 or Lower Point Light Diesel Oil
Engine Oil According to The Provisions of GB 11122	CF15W40(Below environment temperature-5℃)

Engine Model	12V135AZD
Type	direct injection, four-stroke, v-type,water-cooled
Intake Type	Turbocharged with inter-cooled
Max power	330kw
*BoreStroke**	135×150(mm)
Number of Cylinders	12
Cylinders Type	Wet liner
Total Displacement	25.8(L)
Specific Fuel Consumption	≤198（g/kw.h）
Specific Oil Consumption	≤0.7（g/kw.h）
Idle Speed	700(rpm)
Rated Speed	1500(rpm)
Speed Governing Mode	Electronic Governor
Starting Mode	Electrical starting
Crankshaft Rotating Direction	Anti-Clockwise / Facing the flywheel
Noise	117(db)
Smoke	≤2.0
Flywheel casing	SAE 0.5
Flywheel	SAE 14
Net Weight	1950(kg)
*Longwidehigh*	201514501500(mm)
Fuel Grade(According to the Provisions of GB 252)	General Environment No.0 or No.-10 Light Diesel Oil
Southern Area	No.10 Light Diesel Oil
Northern Cold Area	No.-35 or Lower Point Light Diesel Oil
Engine Oil According to The Provisions of GB 11122	CF15W40(Below environment temperature-5℃)

Model	A	B	C	D
12V135AZD	1276	240	620	777

Model	A	B	C	D
12V135AZD	1276	240	620	777
