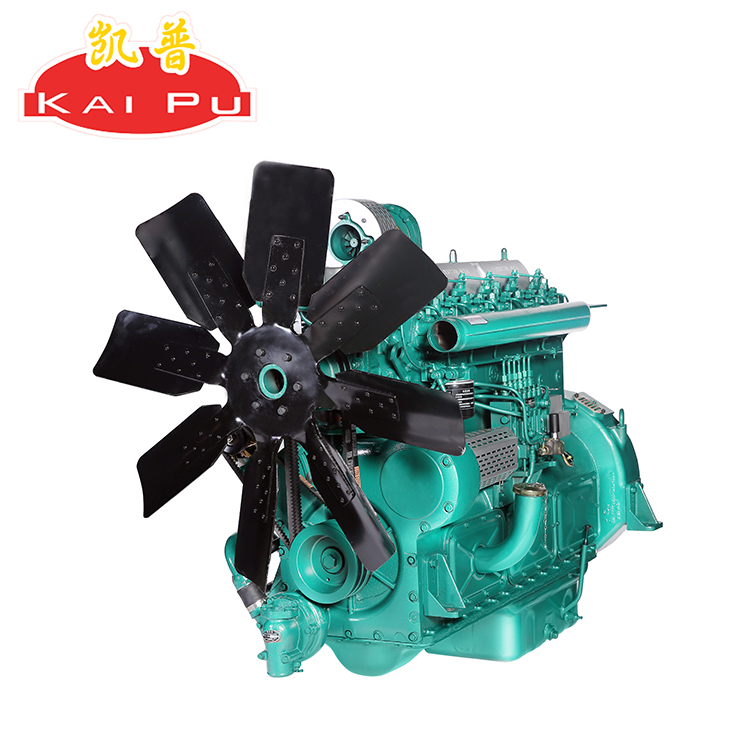

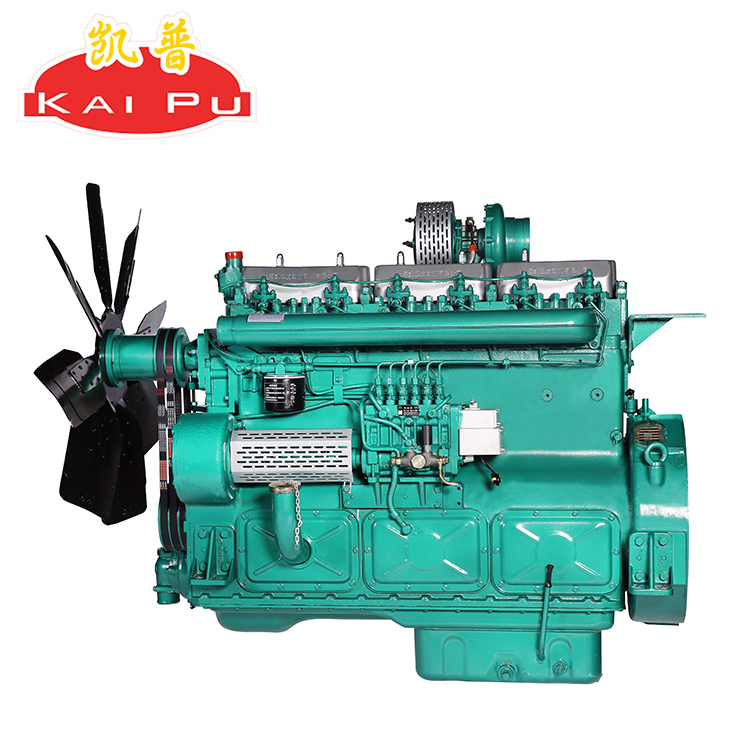

KAI-PU KP350 4 Stroke 6 Cylinder New High Quality Electric Starting Diesel Engine Generator Set

  • KP350
  • KAI-PU
  • Turbocharged Inter-cooled
  • 350kw
  • 1500/1800rpm
  • 135×160(mm)
  • 14.5(L)
  • ≤198(g/kw.h)
  • ≤117dB
  • ≤3.0FSN
  • Customers' Requirement


Features



kp350

KAI-PU series diesel engine is a new type of power generation diesel engine which is improved on the basis of the original series 135 series.


The air intake system is optimized in structure, the appearance of pipeline is simplified, and high-grade vehicle paint is selected. The appearance is more compact and beautiful.



Equipped with oil and water separator, system alarm self-protection device and oil pump, making the diesel engine application more safe, reliable and convenient.


Adopting high pressure and air medium cooling technology, equipped with special high pressure oil pump, porous low pressure inertia injector and electronic governor, it can atomize well and burn well , reduce noise and save energy and environmental protection.



Product Details




KP350zhengmian  KP350cemian


KP350beimian  /KP206-350jubu1

Engine Model

KP350

Type

In-line, Direct injection, four-stroke, water-cooled

Intake Type

Turbocharged Inter-cooled

Max power

350kw

Bore*Stroke

135*160(mm)

Number of Cylinders

6

Cylinders Type

Wet liner

Total Displacement

14.5(L)

Specific Fuel Consumption

198(g/kw.h)

Specific Oil Consumption

≤1(g/kw.h)

Idle Speed

500(rpm)

Rated Speed

1500/1800(rpm)

Speed Governing Mode

Electronic governor

Starting Mode

Electrical starting

Crankshaft Rotating Direction

Anti-Clockwise / Facing the flywheel

Noise

117(db)

Smoke

≤3.0

Flywheel casing

SAE 1#

Flywheel

SAE 14#

Net Weight

1160(kg)

Long*wide*high

1455*795*1245(mm)

Fuel Grade(According to the Provisions of GB

252)

General Environment No.0 or No.-10 Light Diesel Oil

Southern Area

No.10 Light Diesel Oil

Northern Cold Area

No.-35 or Lower Point Light Diesel Oil

Engine Oil According to The Provisions of GB

11122

CF15W/40(Below environment temperature-5℃)


kp350



Model

A

B

C

D

KP350

1076

215

360

720
