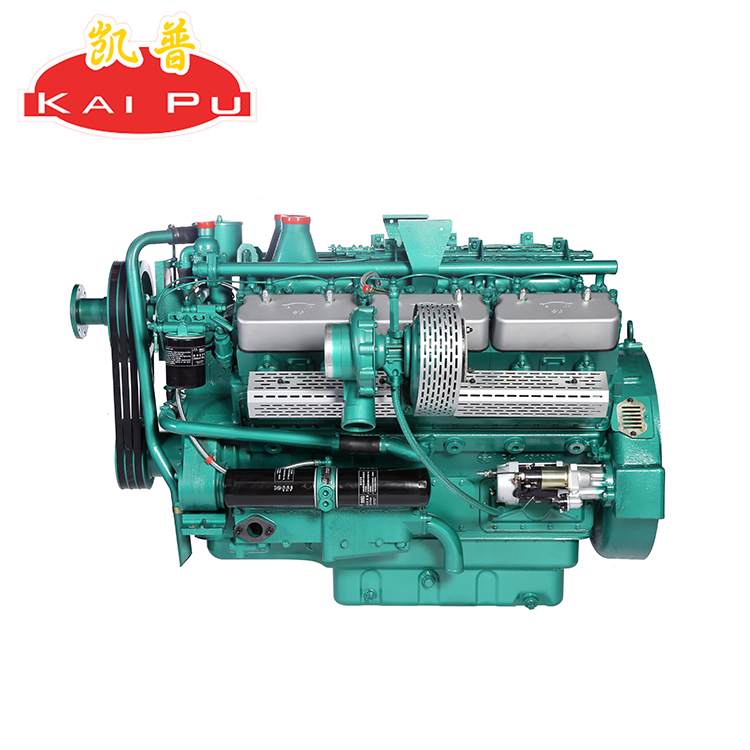

KAI-PU KPV610 12 Cylinder 135 Series 50/60HZ Diesel Engine

  • KPV610
  • KAI-PU
  • Turbocharged Inter-Cooled
  • 610kw
  • 1500/1800rpm
  • 135*155mm
  • 26.6L
  • ≤198g/kw.h
  • ≤117dB
  • ≤2.0FSN
  • Customers' Requirement


Features



KP610(3)

KPV12series engine is a new type of engine designed by Shanghai kaixun on the basis of the original 12Vdiesel engine. The fuel system, intake and exhaust pressurization system are all optimized, and the power range covers 510-660kw.


High alloy cast iron, integral cylinder cover and AVL tangential cylinder cover reduce the eddy ratio, increase the air intensity of the air intake flow coefficient, increase the air pressure, increase the power and effectively reduce the emission.


Double pumps and large flow pumps are used to improve the cooling capacity of diesel engine under high power. External oil cooler is used to improve the cooling and lubricating ability and meet different environmental temperatures.


The central exhaust pipe of the supercharger is adopted to optimize the sealing structure, reduce the probability of air leakage and improve the efficiency of the supercharger.


Increase crankshaft stroke and increase displacement.


High pressure and high power fuel pump is adopted to meet the requirement of higher power. Meanwhile, high strength special coupling is used to make the structure more stable and improve oil supply reliability.



Product Details



KP425-KP475局部1  KP425-KP475局部2


KP425-KP475局部3  KP425-KP475局部4

Engine Model

KPV610

Type

In-line, direct injection, four-stroke, water-cooled,two-valve

Intake Type

Turbocharged with inter-cooled

Max power

610kw

Bore*Stroke

135×155(mm)

Number of Cylinders

12

Cylinders Type

Wet liner

Total Displacement

26.6(L)

Specific Fuel Consumption

198(g/kw.h)

Specific Oil Consumption

≤0.7(g/kw.h)

Idle Speed

700(rpm)

Rated Speed

1500(rpm)/1800(rpm)

Speed Governing Mode

Electronic Governor

Starting Mode

Electrical starting

Crankshaft Rotating Direction

Anti-Clockwise / Facing the flywheel

Noise

117(db)

Smoke

≤2.0

Flywheel casing

SAE 0.5

Flywheel

SAE 14

Net Weight

1950(kg)

Long*wide*high

2015*1750*1500(mm)

Fuel Grade(According to the Provisions of GB

252)

General Environment No.0 or No.-10 Light Diesel Oil

Southern Area

No.10 Light Diesel Oil

Northern Cold Area

No.-35 or Lower Point Light Diesel Oil

Engine Oil According to The Provisions of GB

11122

CF15W/40(Below environment temperature-5℃)


diesel engine



Model

A

B

C

D

KPV610

1426

240

620

861
