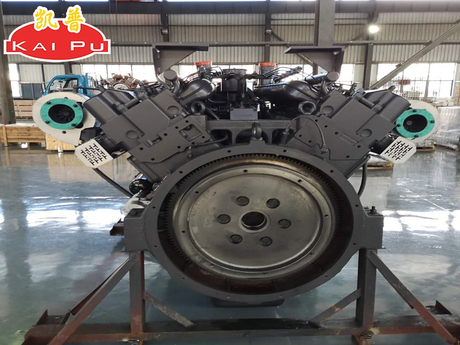

KAI-PU KPV970 12 Cylinder Electric Start 4 Stroke Diesel Engine Generator Set

  • KPV970
  • KAI-PU
  • Turbocharged Inter-Cooled
  • 970kw
  • 1500/1800rpm
  • 138*165mm
  • 32.7L
  • ≤198g/kw.h
  • ≤117dB
  • ≤2.0FSN
  • Customers' Requirement


Features



KPV720

Parallel channel, double pump, integrated cooling machine filter, compact appearance, meet diesel engine cooling and lubrication requirements.


High strength steel back bearing shell, strong bearing capacity, stable operation and longer life.


The oil pump with large flow capacity, with vibrated cooling oil chamber piston, can effectively reduce the temperature of piston and ring set, and the operation is stable and reliable.


Adopt large flow high-pressure ratio supercharger, increase airflow pressure, improve air intake, effectively reduce exhaust emissions, and meet better performance requirements under high power.






Product Details




KP425-KP475局部1  KPV720-正面


KPV720-侧面  KPV720-背面

Engine Model

KPV970

Type

 direct injection, four-stroke, v-type,water-cooled

Intake Type

Turbocharged with inter-cooled

Max power

970kw

Bore*Stroke

138×165(mm)

Number of Cylinders

12

Cylinders Type

Wet liner

Total Displacement

32.7(L)

Specific Fuel Consumption

198(g/kw.h)

Specific Oil Consumption

≤0.7(g/kw.h)

Idle Speed

700(rpm)

Rated Speed

1500/1800(rpm)

Speed Governing Mode

Electronic Governor

Starting Mode

Electrical starting

Crankshaft Rotating Direction

Anti-Clockwise / Facing the flywheel

Noise

117(db)

Smoke

≤2.0

Flywheel casing

SAE 0.5#

Flywheel

SAE 14#

Net Weight

2100(kg)

Long*wide*high

2015*1750*1500(mm)

Fuel Grade(According to the Provisions of GB

252)

General Environment No.0 or No.-10 Light Diesel Oil

Southern Area

No.10 Light Diesel Oil

Northern Cold Area

No.-35 or Lower Point Light Diesel Oil

Engine Oil According to The Provisions of GB

11122

CF15W/40(Below environment temperature-5℃)


KPV936



Model

A

B

C

D

KPV970

1768

190*2

610

965
